| PREPAINTED 55% AI-Zn ALLOY-COATED STEEL COILS / GALVANIZED STEEL COILS |
|
55% Al-Zn alloy-coated steel sheets and galvanized steel sheets have excellent corrosion resistance. However, to improve their dull and changeless surface,
color coating and baking on the surface of 55% Al-Zn alloy-coated steel sheets and galvanized steel sheets produce beautiful and high corrosion resistant prepainted steel sheets.
|
|
|
|
| CHARACTERISTICS |
- Many colors are available to match the environment and attach value to the appearance.
- Superior resistance against environment : Heat resistance, corrosion resistance, humidity resistance, weather proof, etc.
- Formability, impact resistance, and acid/alkali resistance, superior workability and chemical resistance are the major reasons for the popularity of prepainted 55% Al-Zn alloy-coated and galvanized steel sheets.
|
|
 |
|
|
|
PAINT COATING SYSTEMS |
|
CLASSIFICATION OF DURABILITY OF PAINT COATING AND DESIGNATIONS |
|
Classification of durability | Symbol | Paint coating system | Durability test |
Duration of salt spray test | Duration of dew-cycle type accelerated weathering test
(for reference) |
Class 1 | 1 | one-coat | 200 hours | ---- |
Class 2 | 2 | two-coat | 500 hours | ---- |
Class 3 | 3 | two-coat or more | 2000 hours | 1500 hours |
|
|
|
|
|
PAINT COATING SYSTEMS AVAILABLE AS STANDARD |
|
Products | Front Side | Reverse Side |
Primer Coating | Finish Coating |
Polyester Coated |
Epoxy Primer / Polyurethane Primer (PU) | Regular Polyester (PE) |
Service Coating |
Silicon Modified Polyester Coated | Silicon Modified Polyester (SMP) |
Polyvinylidene Floride Coated | Polyvinylidene Floride (PVDF) |
Super Low Gloss Polyester Coated | Super Modified Polyester |
|
|
|

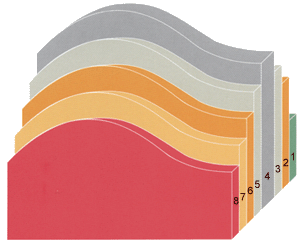

SECTIONAL VIEWS OF PAINT COATING SYSTEMS |
|
 |
| 1. Service Coating |
| 2. Chemical Pretreatment |
| 3. 55% Al-Zn / Zn Coating |
| 4. Cold Rolled Strip |
| 5. 55% Al-Zn / Zn Coating |
| 6. Chemical Pretreatment |
| 7. Primer Coating |
| 8. Finish Coating |
|
|
| (1).Standard Product, finish coating on the front side, service coating on the reverse side. |
|
(2).Finish coating on the front side,
primer plus service coating on the reverse side. |
(3).Finish coating on both side. |
|
|
APPLICATIONS |
|
 |
|
BUILDING & STRUCTURAL ENGINEERING |
|
|
Roofing, sidings, sheds, rolling doors, rain proof doors, partitions,
ceilings, fences and storerooms.
|
|
|
|
FURNITURE & OFFICE EQUIPMENT |
|
|
Steel furniture, partitions, window curtains, walls and shutters.
|
|
|
|
ELECTRICAL APPLIANCES & LIGHTING FITTINGS |
|
|
Washing machines, refrigerators, freezing chambers, fluorescent light
housings, distribution boards, motor cases and photocopiers.
|
|
|
|
KITCHEN EQUIPMENT |
|
|
Ovens, kitchen cabinets, washing tanks, kitchen utensils, shelves, bathroom
and toilet equipment, cookers and oven cases.
|
|
|
|
AGRICULTURAL EQUIPMENT |
|
|
Dryers and other agricultural equipment, greenhouses, silos, barns and warehouses.
|
|
|
|
TRANSPORTATION |
|
|
Air cleaners, various pipes, instrument boards for vessels, oil purifiers and
instrument boards of cars.
|
|
|
|
BOX CONTAINER AND OTHERS |
|
|
Various kinds of vending machines, show windows, cans, compressed containers,
store rooms and signal boards.
|
|
|
|
GAS & FUEL EQUIPMENT |
|
|
Heaters, gas ovens, oil tanks, water heaters and ducts.
|
|
|

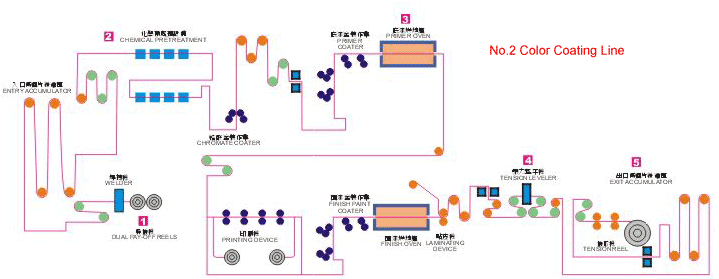

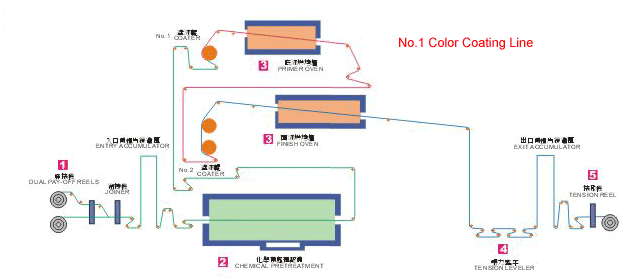

MANUFACTURING PROCESS |
 |
 |
|
SPECIFICATION |
|
PREPAINTED 55% AI-Zn ALLOY-COATED STEEL COILS |
|
Size Available
JIS
Product Name | Hot-Dip Prepainted Galvanized Steel Coils |
JIS / SYSCO | Size Available |
Specification | Order Width (mm) | Base Material Gauge (mm) |
CGCC | 900∼940
940∼1040
1040∼1100
1100∼1220
1220∼1230
1230∼1250 | 0.20∼1.20
0.23∼1.20
0.24∼1.20
0.25∼1.20
0.26∼1.20
0.35∼1.20 |
CGC 340 | 900∼1050
1050∼1220
1220∼1250
1250∼1260 | 0.20∼1.20
0.28∼1.20
0.40∼1.20
0.80∼1.20 |
CGC 400 | 900∼960
960∼1100
1100∼1220
1220∼1240
1240∼1260 | 0.28∼1.20
0.35∼1.20
0.38∼1.20
0.40∼1.20
0.60∼1.20 |
| 900∼920
920∼1230
1230∼1250 | 0.28∼1.20
0.35∼1.20
0.40∼1.20 |
| 900∼920
920∼940
940∼1230
1230∼1250 | 0.21∼1.20
0.25∼1.20
0.28∼1.20
0.47∼1.20 |
CGCD1 | 900∼1250 | 0.30∼1.20 |
Coating Mass and Applicative Range of Gauge of Cold-Rolled Coils. | Z08、Z10：0.30 ~ 1.20 mm
Z12、Z18、Z20、Z22、Z25、Z27：0.20 ~ 1.20 mm
Z35：0.40 ~ 1.20 mm |
Product Name | Hot-Dip Prepainted 55% Al-Zn Alloy-Coated Steel Coils |
SYSCO | Size Available |
Specification | Order Width (mm) | Base Material Gauge (mm) |
CGLC | 900∼920
920∼1000
1000~1200
1200∼1220
1220∼1250 | 0.20∼1.20
0.23∼1.20
0.23∼1.20
0.25∼1.20
0.35∼0.80 |
CGL 340 | 900∼1110
1110∼1220 | 0.30∼1.20
0.37∼1.20 |
CGL 400 | 900∼920
1050∼1220 | 0.32∼1.20
0.35∼1.20 |
CGL 440
CGL 490 | 900∼1050
1050∼1220 | 0.33∼1.20
0.40∼1.20 |
CGL 570 | 900∼914
914∼1050
1050∼1220 | 0.21∼1.00
0.23∼1.00
0.30∼1.00 |
CGLD1 | 900∼1250 | 0.30∼1.20 |
Coating Mass and Applicative Range of Gauge of Cold-Rolled Coils. | AZ050、AZ070、AZ090、AZ100、 AZ120、AZ150、AZ165：0.20 ~ 1.20 mm
AZ180：0.20 ~ 0.96 mm
AZ200：0.30 ~ 0.80 mm |
ASTM
Product Name | Hot-Dip Prepainted Galvanized Steel Coils |
ASTM (2001Ed.) | Size Available |
Specification | Order Width (mm) | Base Material Gauge (mm) |
Metric | Imperial |
A653M CS
A653M FS | A653 CS
A653 FS | 900∼940
940∼1040
1040∼1100
1100∼1220
1220∼1230
1230∼1250 | 0.20∼1.20
0.23∼1.20
0.24∼1.20
0.25∼1.20
0.26∼1.20
0.35∼1.20 |
A653M SS Grade230 | A653 SS Grade33 | 900∼940
940∼1040
1040∼1100
1100∼1220
1220∼1230
1230∼1250 | 0.20∼1.20
0.23∼1.20
0.24∼1.20
0.25∼1.20
0.26∼1.20
0.35∼1.20 |
A653M SS Grade255 | A653 SS Grade37 | 900∼1050
1050∼1220
1220∼1250
1250∼1260 | 0.20∼1.20
0.28∼1.20
0.40∼1.20
0.80∼1.20 |
A653M SS Grade275 | A653 SS Grade40 | 900∼960
960∼1100
1100∼1220
1220∼1240
1240∼1260 | 0.28∼1.20
0.35∼1.20
0.38∼1.20
0.40∼1.20
0.60∼1.20 |
A653M SS Grade340 | A653 SS Grade50 | 900∼920
920∼1230
1230∼1250 | 0.28∼1.20
0.35∼1.20
0.40∼1.20 |
A653M SS Grade550 | A653 SS Grade80 | 900∼920
920∼940
940∼1230
1230∼1250 | 0.21∼1.20
0.25∼1.20
0.28∼1.20
0.47∼1.20 |
A653M DDS | A653 DDS | 900∼1250 | 0.30∼1.20 |
Coating Mass and Applicative Range of Gauge of Cold-Rolled Coils. | Metric:
Z080：0.30 ~1.20 mm
Z120、Z180、Z275：0.20 ~ 1.20 mm
Z350：0.40 ~ 1.20 mm
Imperial:
G40、G60、G90：0.20 ~ 1.20 mm
G115：0.40 ~ 1.20 mm |
Product Name | Hot-Dip Prepainted 55% Al-Zn Alloy-Coated Steel Coils |
ASTM (2001 Ed.) | Size Available |
Specification | Order Width (mm)) | Base Material Gauge (mm) |
Metric | Imperial |
A792M CS
A792M FS | A792 CS
A792 FS | 900∼920
920∼1000
1000∼1200
1200∼1220
1220∼1250 | 0.20∼1.20
0.22∼1.20
0.23∼1.20
0.25∼1.20
0.30∼0.80 |
A792M SS Grade230 | A792 SS Grade33 | 900∼920
920∼1000
1000∼1200
1200∼1220
1220∼1250 | 0.20∼1.20
0.22∼1.20
0.23∼1.20
0.25∼1.20
0.30∼0.80 |
A792M SS Grade255 | A792 SS Grade37 | 900∼1110
1110∼1220 | 0.30∼1.20
0.37∼1.20 |
A792M SS Grade275 | A792 SS Gsprade40 | 900∼920
920∼1220 | 0.32∼1.20
0.35∼1.20 |
A792M SS Grade345 | A792 SS Grade50 | 900∼1050
1050∼1220 | 0.33∼1.20
0.40∼1.20 |
A792M SS Grade550 | A792 SS Grade80 | 900∼914
914∼1050
1050∼1220 | 0.21∼1.00
0.23∼1.00
0.30∼1.00 |
A792M DS | A792 DS | 900∼1250 | 0.30∼1.20 |
Coating Mass and Applicative Range of Gauge of Cold-Rolled Coils. | Metric:
AZ150，AZ165：0.2∼1.2mm
AZ180：0.20∼0.96mm
Imperial:
AZ50，AZ55：0.20∼ 1.20 mm
AZ60：0.20 ~ 0.96 mm |
|
|
|
Classified symbol | Yield Point Minimum N/mm2 | Tensile Strength Minimum
N/mm2 | Elongation Minimum % | Application |
Nominal Thickness mm (t) |
JIS
G3322-1998 | SYSCO specification | 0.25≤t<0.4 | 0.4≤t<0.6 | 0.6≤t<1.0 | 1.0≤t<1.6 |
| CGLCC | CGLC | (205) | (270) | (20) | (21) | (24) | (24) | Commercial |
| CGLCD | CGLD1 | --- | 270 | --- | 27 | 31 | 32 | Drawing |
| --- | CGL340 | 245 | 340 | 20 | 20 | 20 | 20 | Structural |
| CGLC400 | CGL400 | 295 | 400 | 16 | 17 | 18 | 18 | Structural |
| CGLC440 | CGL440 | 335 | 440 | 14 | 15 | 16 | 18 | Structural |
| CGLC490 | CGL490 | 365 | 490 | 12 | 13 | 14 | 16 | Structural |
| CGLC570 | CGL570 | 560 | 570 | --- | --- | --- | --- | Structural |
ASTM Designation
1999 | Yield Point Minimum | Tensile Strength Minimum | Elongation Minimum % | Application |
ksi(MPa) | ksi(MPa) |
| A792(M)-99 CS TYPE A,B,C | --- | --- | --- | Commercial |
| A792(M)-99 FS | --- | --- | --- | Lock Forming |
| A792(M)-99 DS | --- | --- | --- | Drawing |
| A792(M)-99 SS Grade33(230) | 33(230) | 45(310) | 20 | Structural |
| A792(M)-99 SS Grade37(255) | 37(255) | 52(360) | 18 | Structural |
| A792(M)-99 SS Grade40(275) | 40(275) | 55(380) | 16 | Structural |
| A792(M)-99 SS Grade50(345) | 50(345) | 65(450) | 12 | Structural |
| A792(M)-99 SS Grade80(550) | 80(550) | 82(570) | --- | Structural |
|
| |
Remark: | JIS/SYSCO: ( )The values in parentheses in the table are only for informative reference. |
|
ASTM:A792(M) is metric, represented by the number within ().
|
|
|
PREPAINTED GALVANIZED STEEL COILS |
|
|
JIS G3312-1994 / SYSCO
Classified symbol | Yield Point Minimum N/mm2 | Tensile Strength Minimum
N/mm2 | Elongation Minimum % | Application |
Nominal Thickness mm (t) |
0.25≤t<0.4 | 0.4≤t<0.6 | 0.6≤t<1.0 | 1.0≤t<1.6 |
| SGCC | --- | --- | --- | --- | --- | --- | Commercial |
| SGCH | --- | --- | --- | --- | --- | --- | Commercial Hard |
| SGCD1 | --- | 270 | --- | 34 | 36 | 37 | Drawing |
| SGC340 | 245 | 340 | 20 | 20 | 20 | 20 | Structural |
| SGC400 | 295 | 400 | 18 | 18 | 18 | 18 | Structural |
| SGC440 | 335 | 440 | 18 | 18 | 18 | 18 | Structural |
| SGC490 | 365 | 490 | 16 | 16 | 16 | 16 | Structural |
| SGC570 | 560 | 570 | --- | --- | --- | --- | Structural |
ASTM Designation
1999 | Yield Point Minimum | Tensile Strength Minimum | Elongation Minimum % | Application |
ksiMPa) | ksi(MPa) |
| A653(M)-99 CS TYPE A,B,C | --- | --- | --- | Commercial |
| A653(M)-99 FS TYPE A,B | --- | --- | --- | Lock Forming |
| A653(M)-99 DDS | --- | --- | --- | Drawing |
| A653(M)-99 SS Grade33(230) | 33(230) | 45(310) | 20 | Structural |
| A653(M)-99 SS Grade37(255) | 37(255) | 52(360) | 18 | Structural |
| A653(M)-99 SS Grade40(275) | 40(275) | 55(380) | 16 | Structural |
| A653(M)-99 SS Grade50(340) | 50(340) | 65(450) | 12 | Structural |
| A653(M)-99 SS Grade80(550) | 80(550) | 82(570) | --- | Structural |
|
|
|
Remark:ASTM:A653(M) is metric, represented by the number within (). |
|
