Berridge Architectural Panel
|
TEE-PANEL P.V.D.F. (KYNAR 500, 70%) SYSTEM |
Strength of Base Steel Sheet
Strength required to meet ASTM A653M Grade 275 (GI) or ASTM A792M Grade 275 (GL), i.e., yield strength > 275 MPa and tensile strength > 380 MPa (by test method of CNS 2111 G2013).
Al-Zn Alloy Coating Layer
Coating layer required to meet specification of ASTM A653M Z275 (GI) or ASTM A792M AZ150 (GL).
Al-Zn Alloy Coating Mass on Both Sides
GI > 275 g/m2, GL > 150 g/m2 (by test method of average triple test of ASTM-A90).
Surface Prepainting Treatment
Prepainting deviation required to meet specification of Section 2.4 and Table 2.1, AS 2728-1984.(by test method of coating mass measurement, ASTM D1005)
Top coating(2-coat / 2-bake)
Primer coating:5.0µm (nominal) anti-corrosion epoxy resin paint.
Finish coating:20.0µm (nominal) P.V.D.F.
Back coating(2-coat / 2-bake)
Primer coating:5.0µm (nominal) anti-corrosion epoxy resin paint.
Finish coating:7.5µm (nominal) P.E.
Steel Sheet Thickness:
B.C.T.: 0.426mm, 0.50mm, 0.60mm, 0.80mm, 1.00mm, 1.20mm
T.C.T.: 0.476mm, 0.55mm, 0.65mm, 0.85mm, 1.05mm, 1.25mm
|
Deserted Animals' Home at Tainan |
|
ADVANTAGE OF SITE FORMING & PRODUCT |
|
Portable roll forming machine, high flexibility.
Superior roof integrity, no leak-prone panel endlaps watertight.
Save money on freight, transportion damage is prevented.
Save time; no delays due to shortages of misfabrications.
Exact-fit eave-to-ridge.
Better appearance, curve, tapered other custom shape.
Raw Material-PVDF coating, longlife, no fading.
|
Portable Forming Machine SS-14 |
|

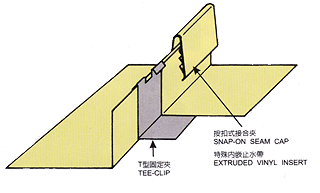

TEE-PANEL |
Concealed fasteners.
Extruded vinyl weatherseal as integral part of Snap-On Seam. to prevent siphoning or flooding over seam.
Eave to ridge lengths, one piece.
Tighten Snap-On seam.
 |
  |
|
|

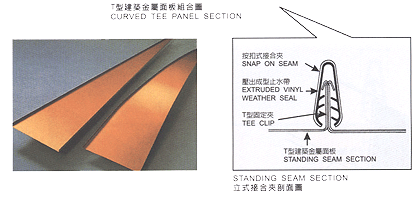

CURVED TEE-PANEL |
Concealed fasteners.
Extruded vinyl weatherseal as integral part of Snap-On Seam. to prevent siphoning or flooding over seam.
Tighten Snap-On seam.
Flat arc surface.
 |
 |
|
|
CURVED TEE-PANEL PRODUCT SHOWCASE |
SL-24 Portable Rollformer fabricates tapered Tee-Panels for a perfect fit on round corners.
| Precision roll formed on-site for a perfect fit with SS-14 Portable Roll Former, Curved Tee-Panels are both
extremely economical and strikingly attractive. The smooth, continous curved barrel vault panels are perfect for roofs, covered walkways and fascia systems.
|
|
Tapered, Currved Compound Currved Straight Panels blend harmoniously to provide a striking design statement.
|
Free-from Compound Curved Tee-Panels are hand-curved over lightweight curved steel framing members.
Finished Photo.
|
|
